  1. Tasks
  2. Cloud

Amazon S3

PreviousSharePointNextGoogle Cloud Storage

Last updated 1 year ago

Amazon S3 or Amazon Simple Storage Service is a service offered by Amazon Web Services that provides object storage through a web service interface. Amazon S3 uses the same scalable storage infrastructure that Amazon.com uses to run its e-commerce network. (Wikipedia)

The operations on this component are almost same. But the names are not same. Bucket is used for folder.

Input

Attribute
Description

Profile

IAM User to access S3

Amazon Region

Amazon Region of the bucket

Action

Create/Delete/List Bucket

Upload/Download/Delete File

Bucket

Bucket name

Key

Key of an object which will be uploaded or downloaded.

The contents of a file can be retrieved with key.

Media

Input for upload, Output for download

· File

· Parameter

Data

Input data when the media is parameter type.

Path

The path of the source file to be uploaded.

The path of the target file to bd downloaded.

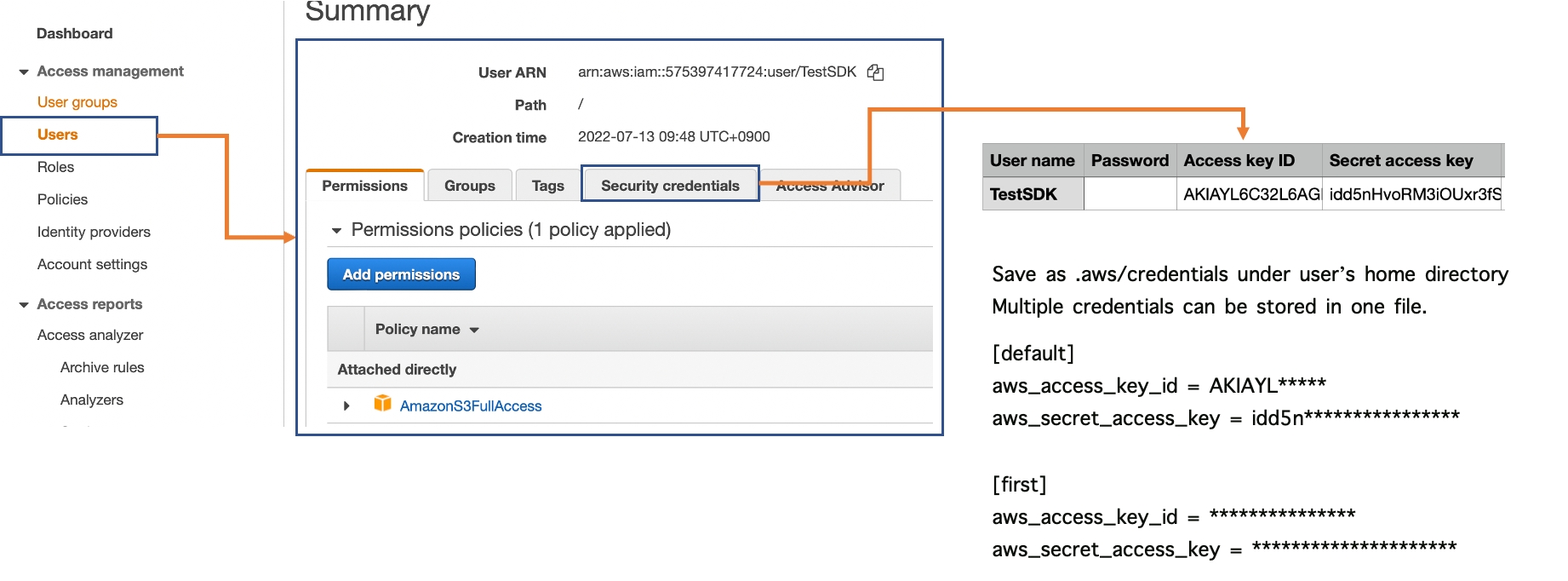

The value of Profile comes from IAM.

Output

Attribute
Description

ResultList

Bucket list when "List Bucket" action is performed.

ResultContents

Contents of an object when "Download File" action is performed.

· File path of downloaded object when Media is File type.

· Stringified contents of the downloaded object when Media is Parameter type

Example

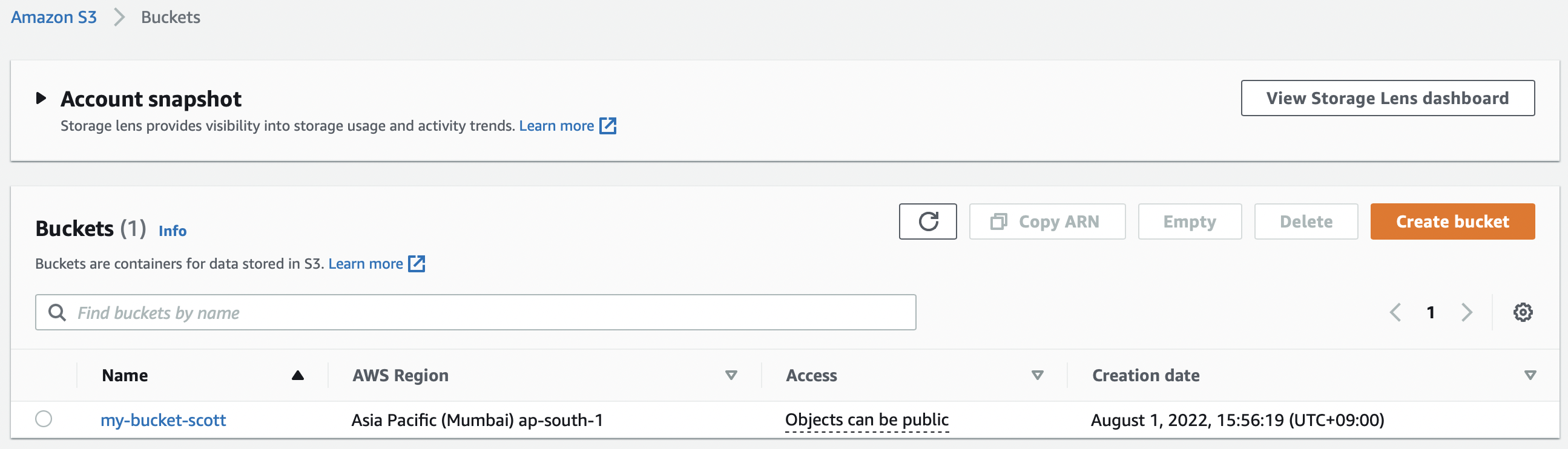

Create a bucket

Attribute
Description

Profile

first

Amazon Region

ap-south-1

Action

Create a bucket

Bucket

my-bucket-scott

Key

Media

Data

Path

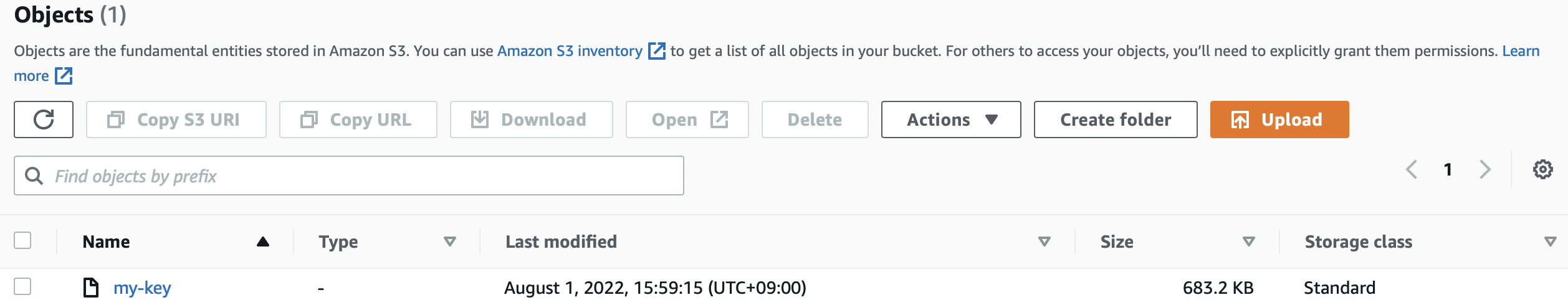

Upload a file

Attribute
Description

Profile

first

Amazon Region

ap-south-1

Action

Create a file

Bucket

my-bucket-scott

Key

my-key

Media

File

Data

Path

/home/myuser/my-file.txt

Delete a file

Attribute
Description

Profile

first

Amazon Region

ap-south-1

Action

Delete a file

Bucket

my-bucket-scott

Key

my-key

Media

Data

Path

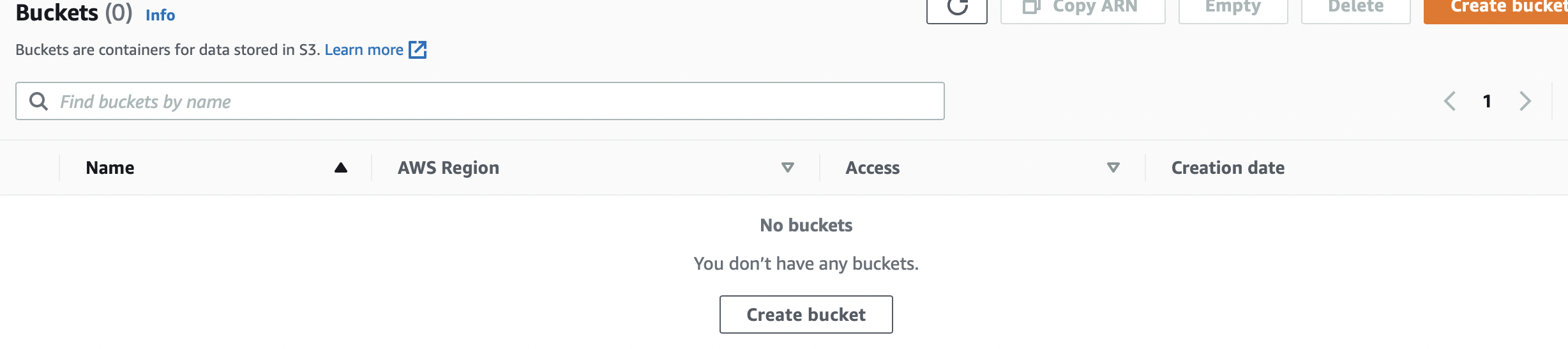

Delete a bucket

A bucket is not deleted if the bucket is not empty.

Attributes

Description

Profile

first

Amazon Region

ap-south-1

Action

Delete a bucket

Bucket

my-bucket-scott

Key

Media

Data

Path
