Result

Transaction

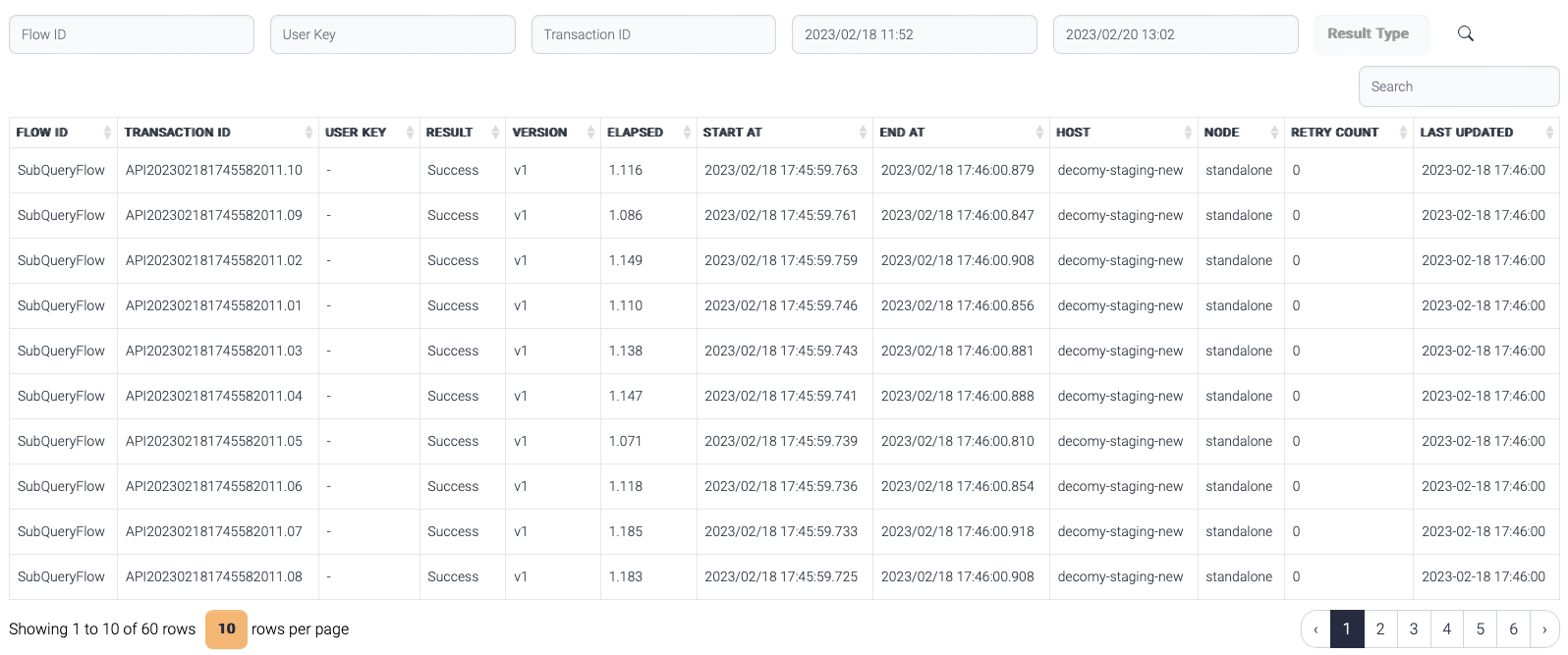

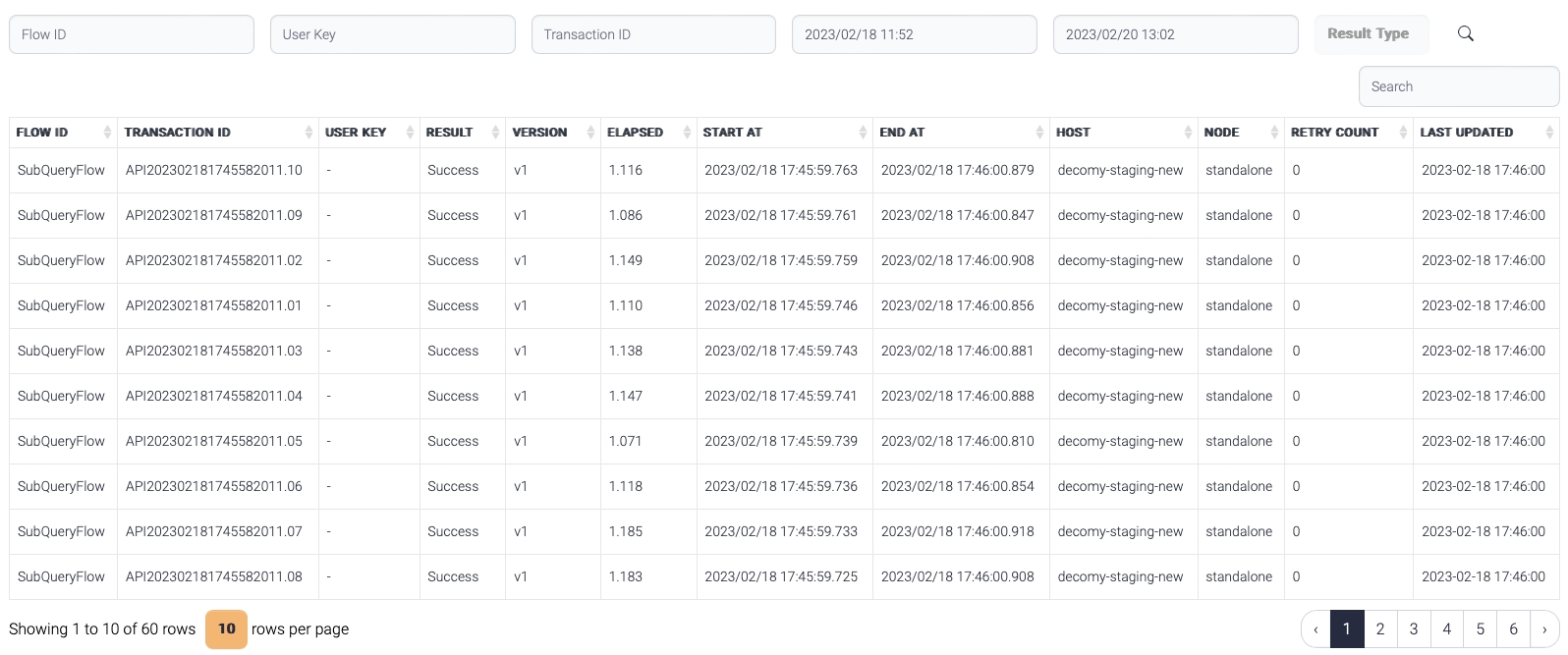

Transaction shows the results of the flow executions.

These are the descriptions of the columns.

Name	Description
Flow ID	Flow ID
Transaction ID	Transaction ID
User Key	A key value assigned as a user defined key. This value can be assigned during web service generation.
Result	Transaction result. S = Success F = Failure
Version	Flow version
Elapsed	Entire execution time (sec) Any delays between component executions will be included in the overall execution time. This is because the execution time is measured from the start of the first component to the completion of the last component in the flow. If there are any delays in between, they will be added to the overall execution time.
Start at	Transaction start time
End at	Transaction end time
Host	The host of this transaction
Node	The instance name of this transaction
Retry count	Retry count for the asynchronous execution
Last Updated	Last updated time. If a transaction was executed asynchronously and being retried, End time is empty but Last updated time is updated every retry.

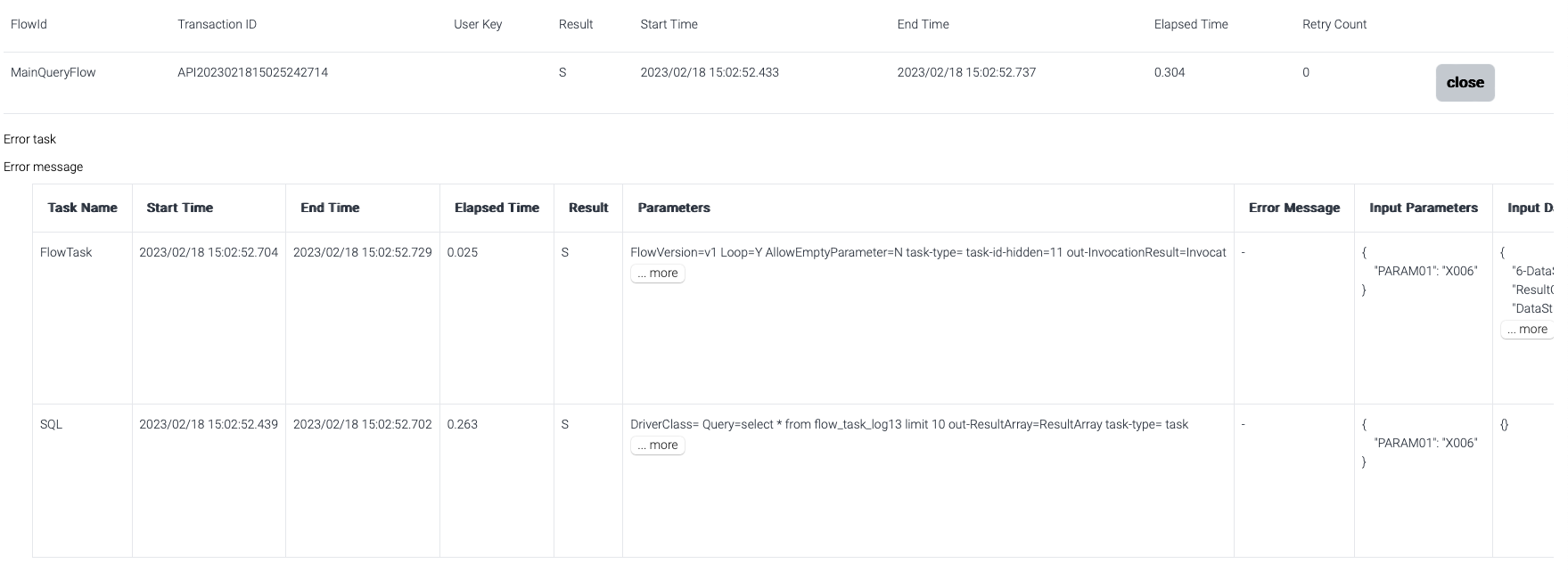

Double click a transaction shows the detail result. The detail shows the result and input/output data of each step.

The detail result shows these data.

Name	Description
Task Name	The name of the node
Start Time	Start time of the execution of this node
End Time	End time of the execution
Elapsed Time	Execution Time of this component (sec)
Result	S = Success F = Failure If the result is F, most of the flow executions stop at this node. But if the exception handled (red line), then the execution continues.
Parameters	Properties of this node Input Output
Error Message	Error message of this node
Input Parameters	Input parameters passed from Flow controller
Input Data	Input data passed to this node
Result Data	Output data generated and input data of this node

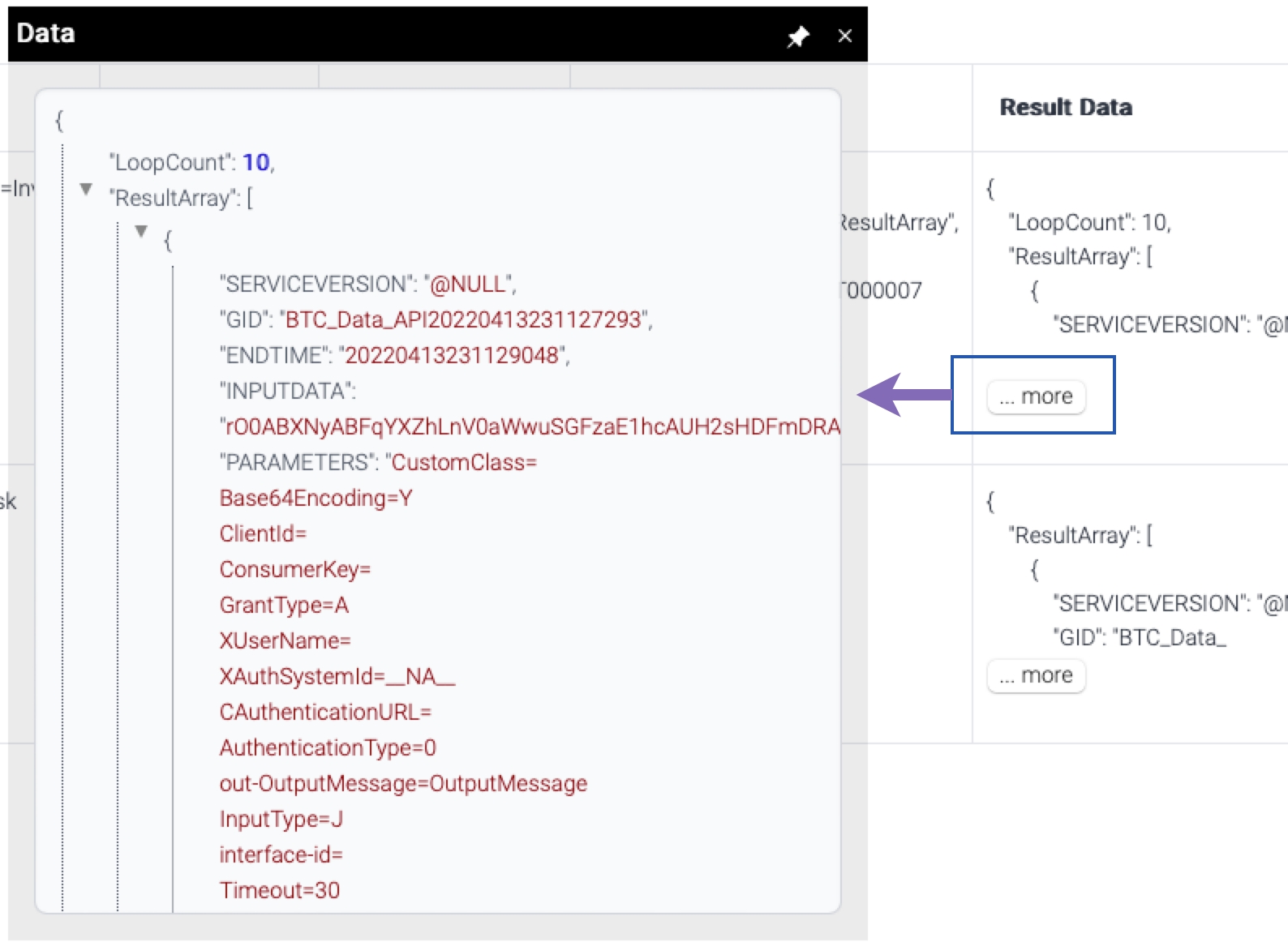

Click more () displays a popup which shows all data.

These transactions are logged in these tables. NN means days from 01 to 31.

Name	Description
FLOW_EXECUTIONNN	These tables have the start log of the transactions.
FLOW_EXECUTION_RESULTNN	These tables have the end log of the transactions. If a transaction is retried, the results of those retries are logged in this table.
FLOW_TASK_LOGNN	These tables have the detail log of each task of a transaction. These tables have the input/output data, and properties and input parameters.

The data is truncated if the data is larger than the column size or user defined max data size.

· log.max.configured - boolean flag whether max log size is limited by system property.

· log.max.column.size - max data size in bytes.

If these properties are not set, max size is acquired from database. The column size of data column is the max size.

There are three columns which store data.

Name	Description
PARAMETERS	Input parameters from the external client or predefined flow parameters
INPUTDATA	Input data to a task
RESULTDATA	Ouptut data from a task

The type of these columns are followings.

Database	Type	Size
Mysql	text	64KB
MSSQL	text	64KB
Postgresql	text	64KB
Oracle	clob	2,147,483,647 characters

These data are stored in Map objects. Each data is a Map object, and that map object contains multiple and hierarchical objects inside in name=value format.

The truncation logic traverses the map object, check the size of the value, and remove the original if the size is larger than 512 bytes.

Once the data truncation is done, the final data to the table are generated through these steps.

· Convert Map object to JSON string.

· Compress with gzip algorithm.

· Encode with base64.

Even if the data is not truncated, the displayed data can be truncated. This truncation occurs when the data is too large to be displayed. This truncation occurs when the data size is higher than 1024.

Report

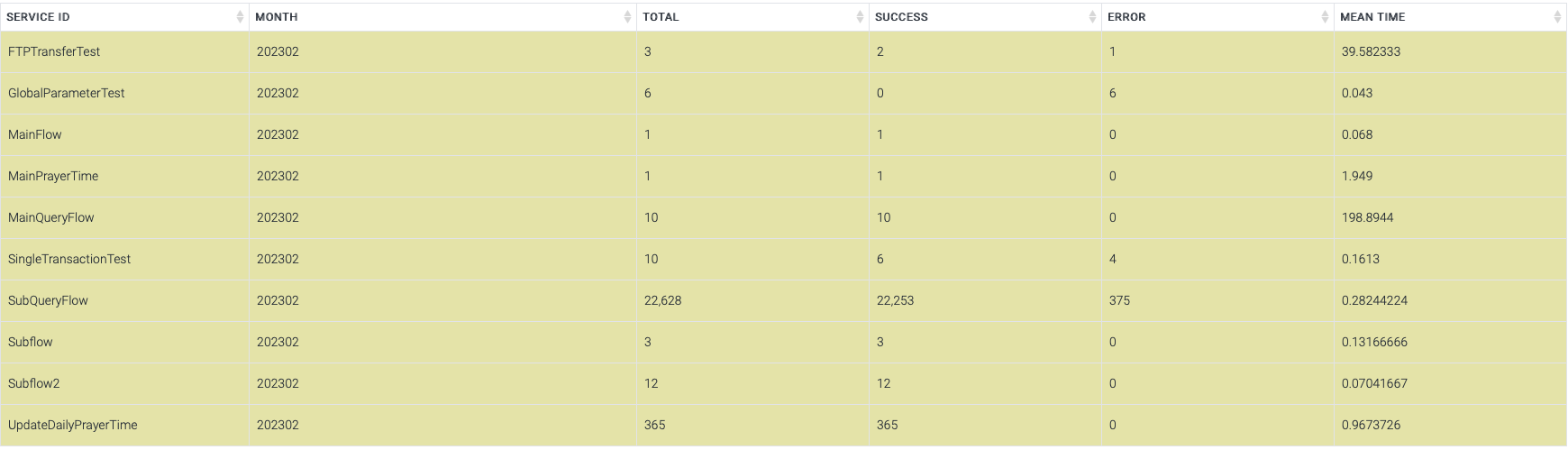

Report shows the summary of the transactions. Report provides hourly/daily/monthly summary.

· Hourly report

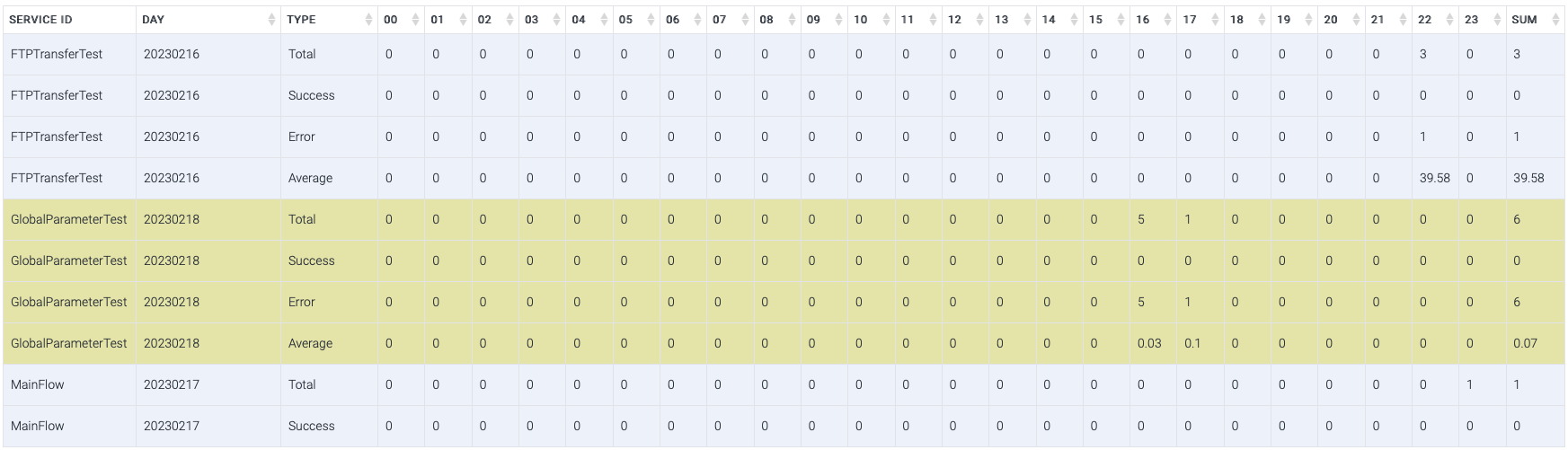

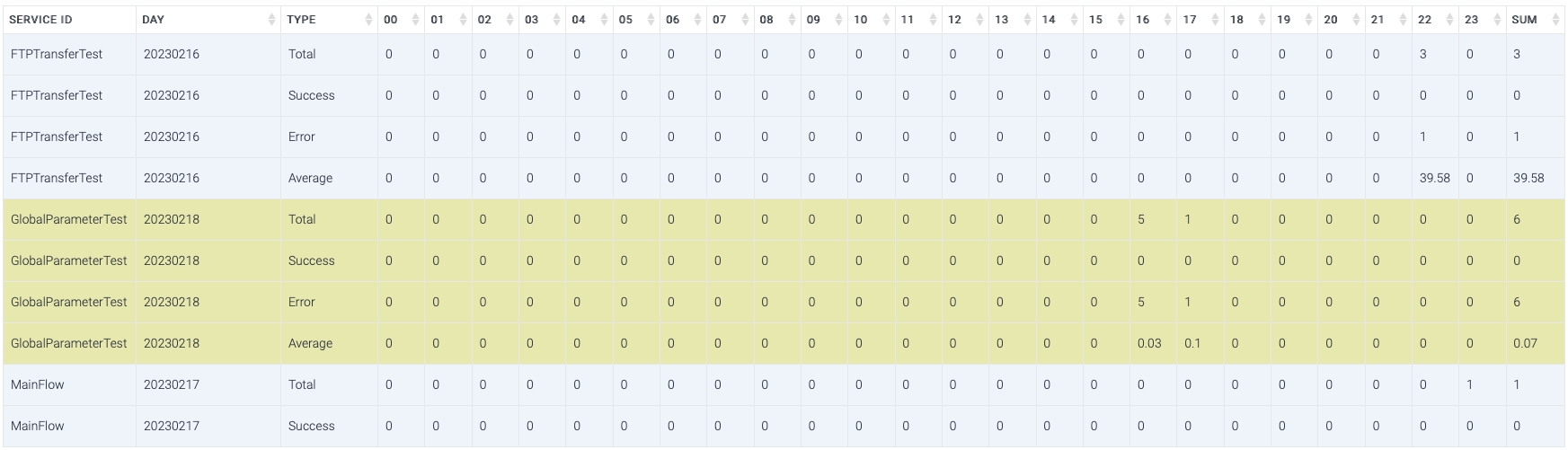

Hourly report shows Total/Success/Error/Average time(sec) per day in 00 ~ 23 hour columns.

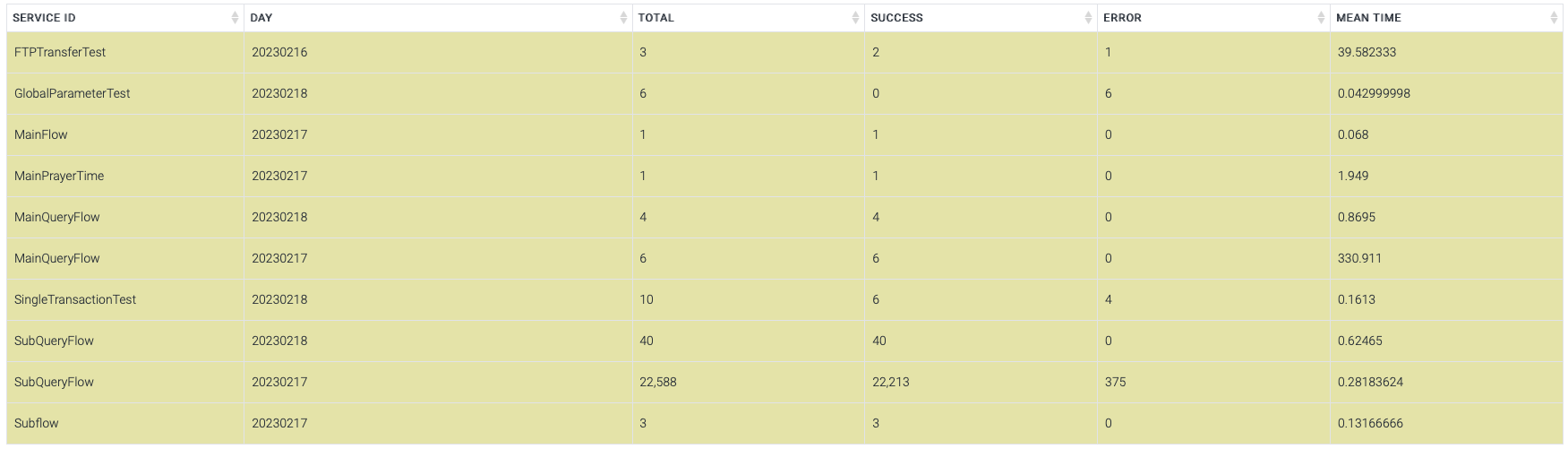

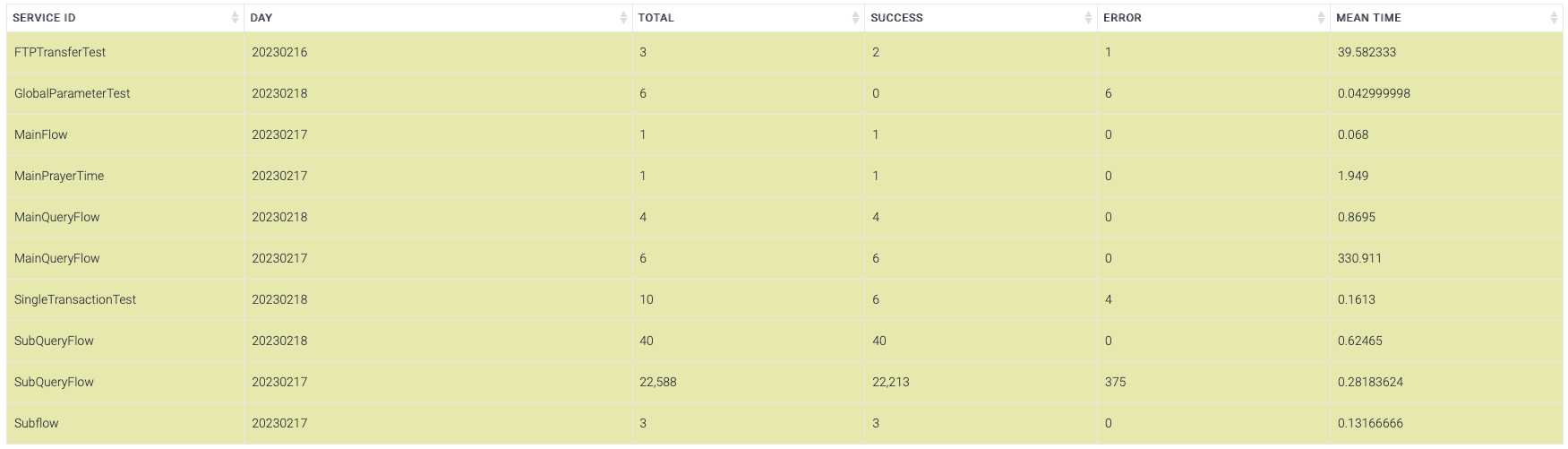

· Daily report

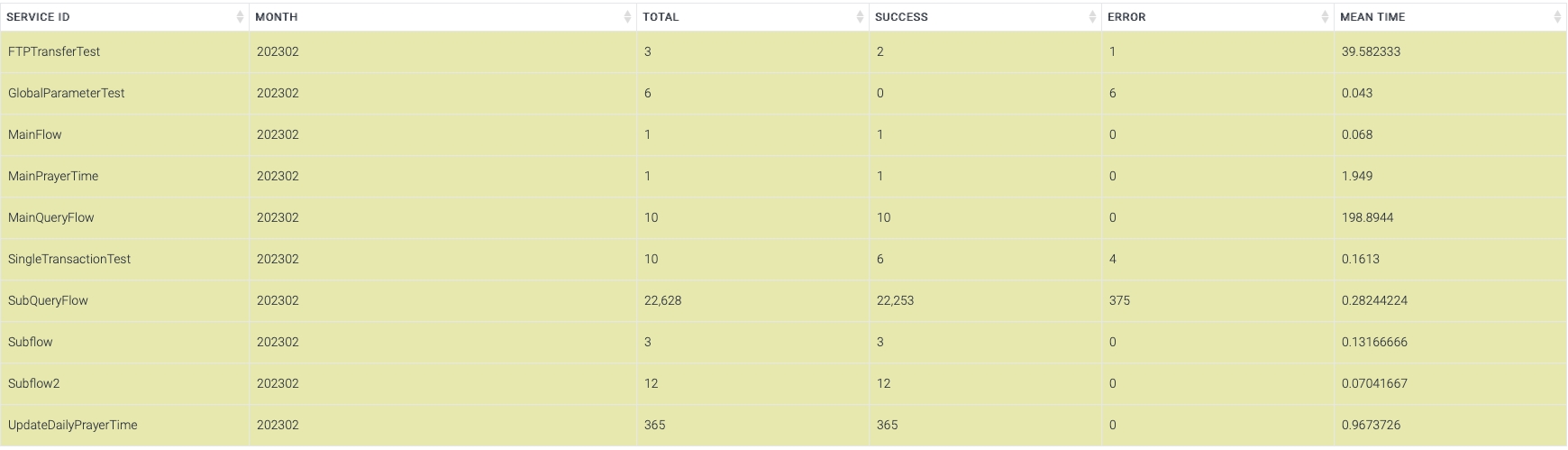

· Monthly report

Schedule

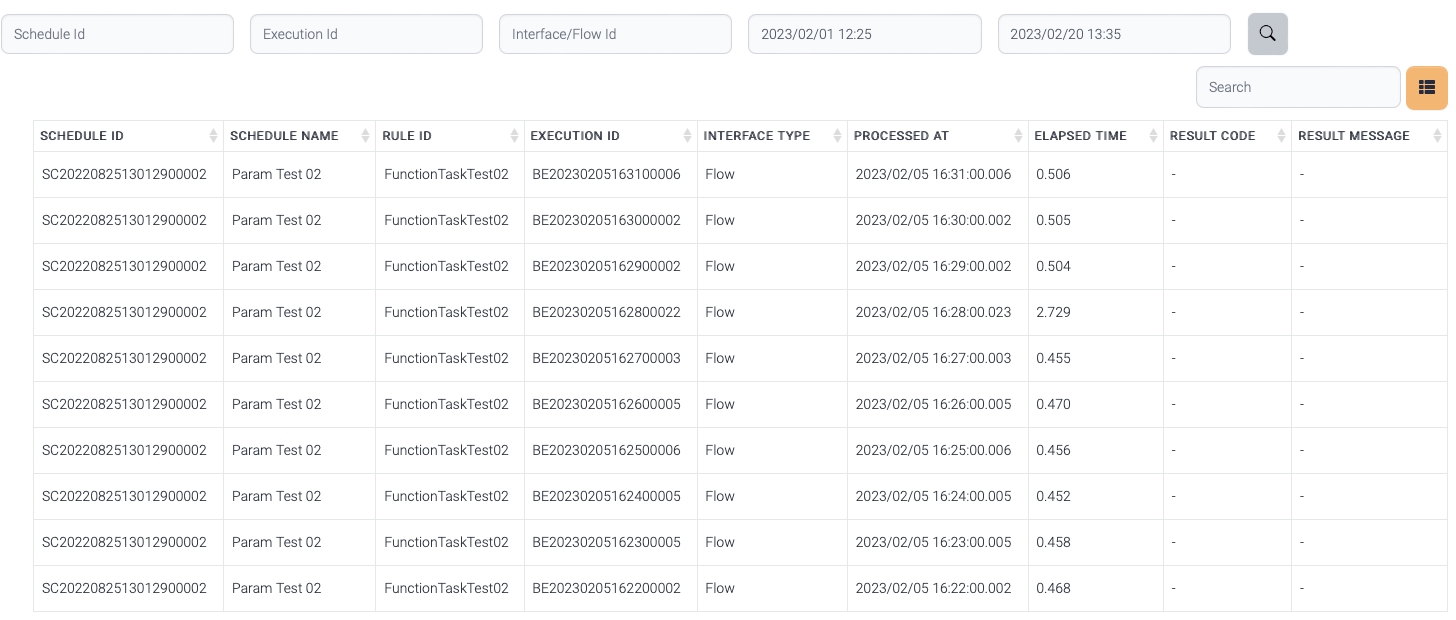

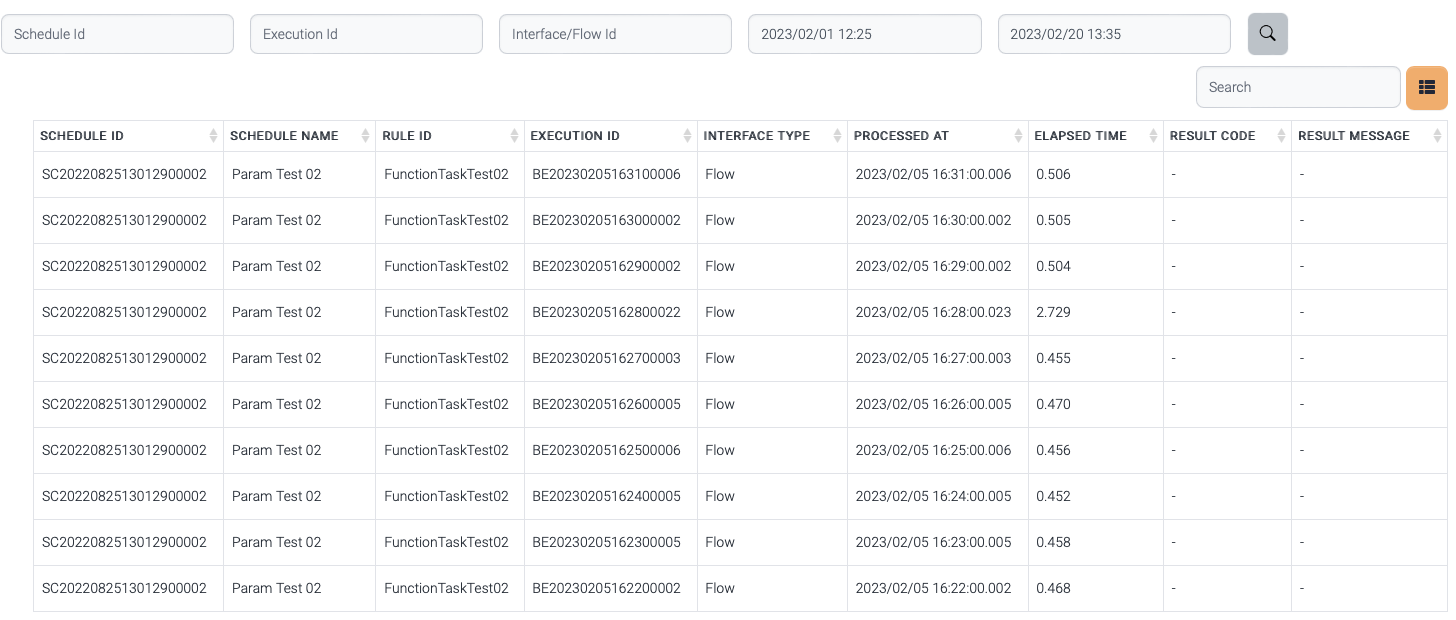

Schedule result shows the history of the schedule executions.

Web Inout

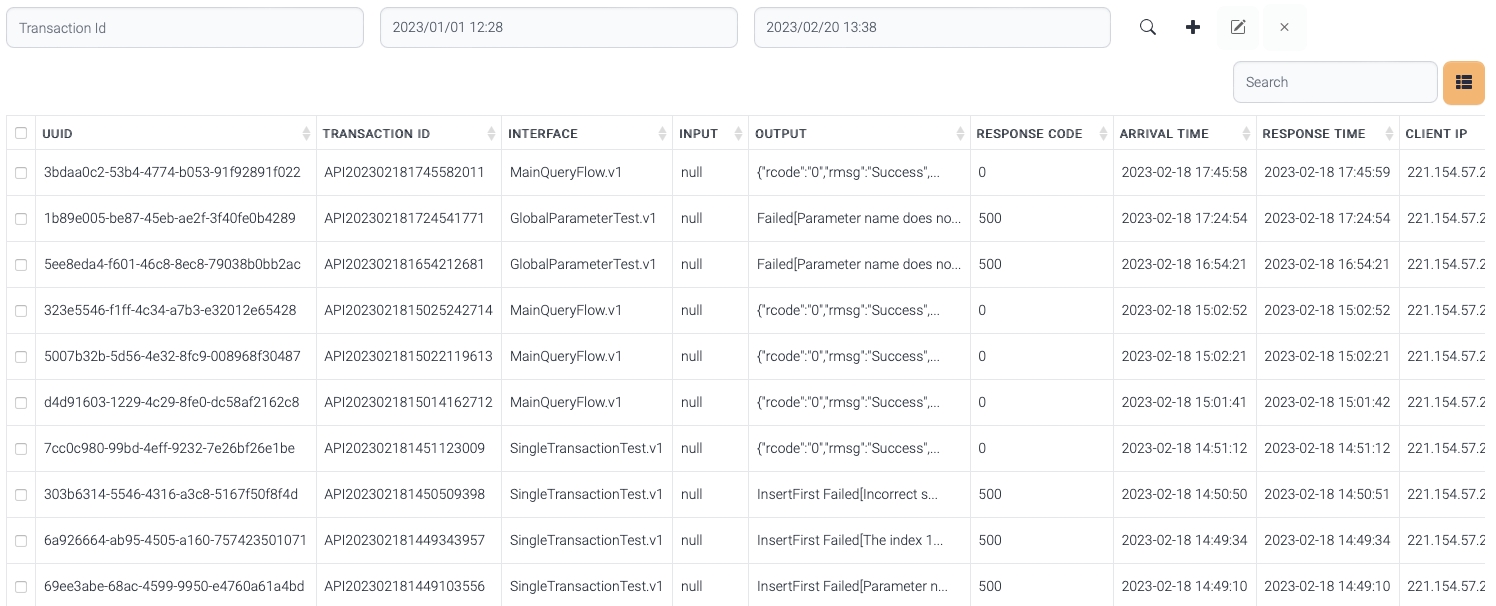

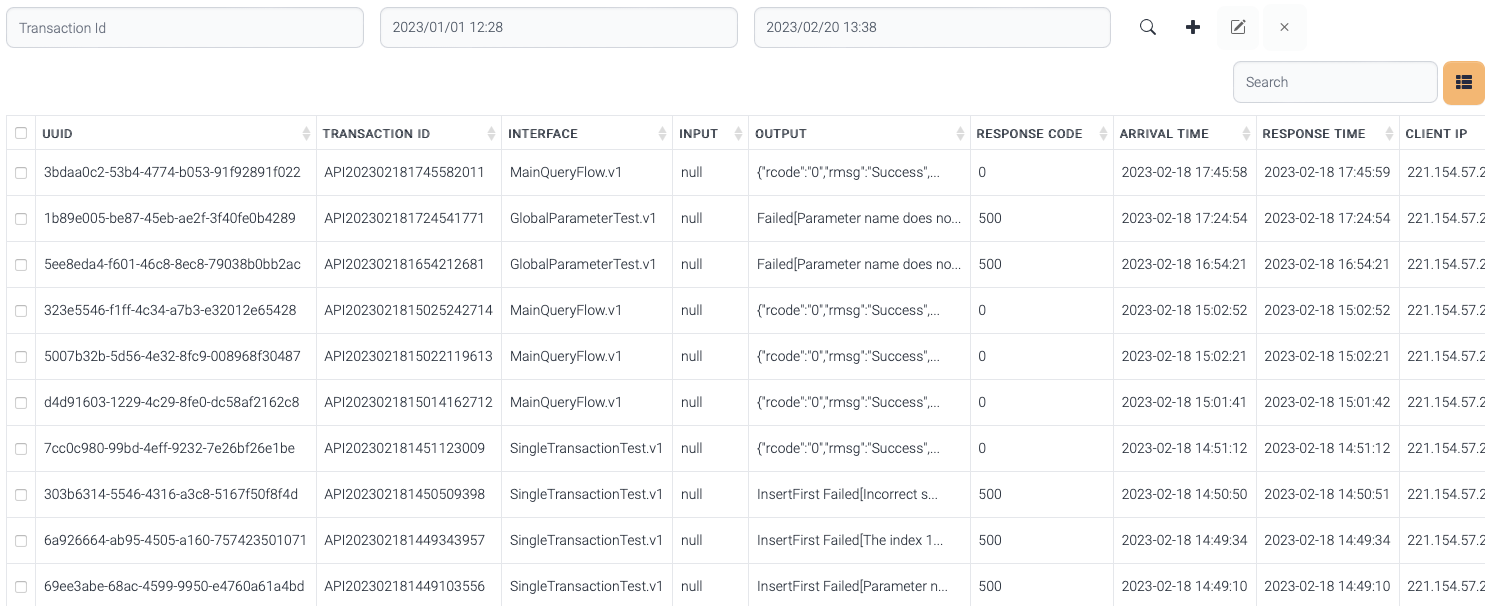

Web Inout shows the history of the web-based transactions - web service/REST.

The table shows these data.

Name	Description
Transaction ID	Transaction ID. If the incoming request does not contain transaction id, a transaction id is generated.
Flow	Flow ID and version
Input	Input data
Output	Response data
Response code	0 = success or http response code for failure
Arrival time	Arrived time
Response time	Response time
Client IP	Client address

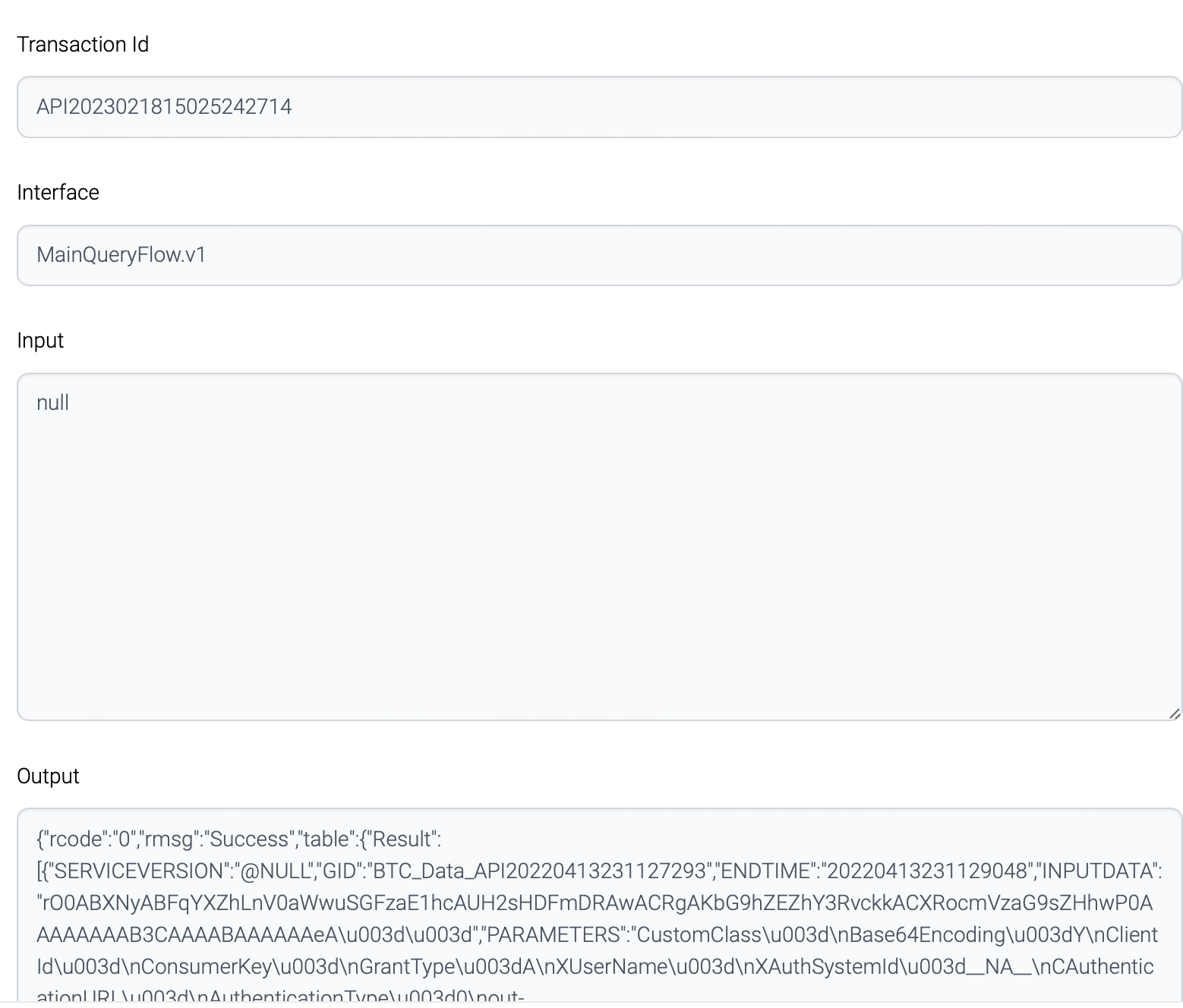

Double click a transaction shows entire input/output data.
