ISM Admin UI

PreviousStartup/ShutdownNextDashboard

Last updated 1 year ago

All the operational tasks and implementation of flows are performed through Admin UI except custom java class or script implementations. You may not need to implement custom scripts or functions. Most of the business flow implementations can be done inside Admin UI.

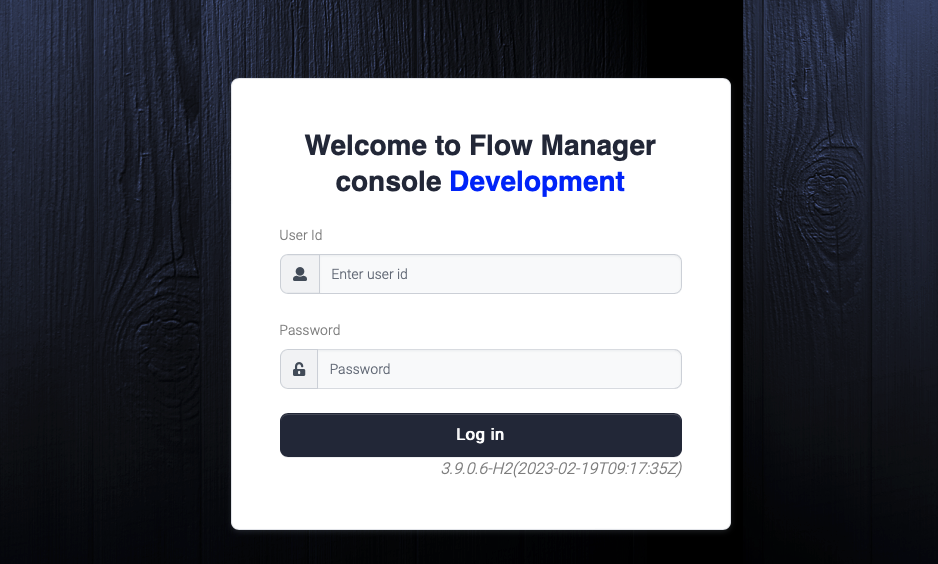

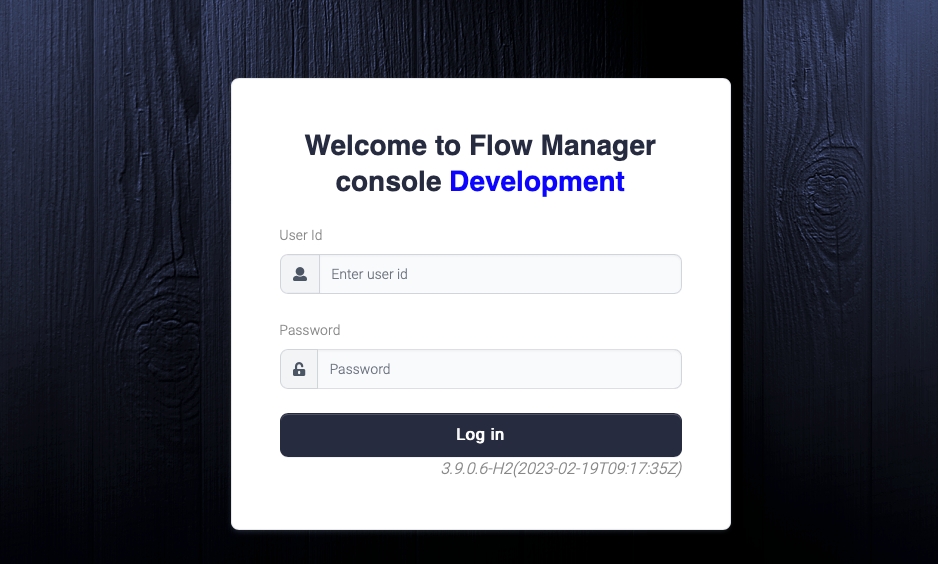

· URL :

· ID : ism

· Password : fiss

Admin UI has these functions.

· Dashboard

o Provides runtime status of entire services.

o Provides runtime status of entire instances.

· Flow design

o Provides business flow implementation tool.

· Job

o Provides schedule management.

· Transaction result

o Provides the transaction results and the details.

o Provides the summary of transactions ??? daily/hourly.

o Provides the input/output messages of the transactions.

· Interface

o Manages system information.

o Manages data structures.

· Web service

o Provides web service/client generation tool.

o Provides REST API Key management.

· Utility

o Provides some useful functions during operation.

· Admin

o Manages users/access control/housekeeping.

o Provides deployment tool from test/staging to production environment.

These are the menus of Admin UI.

Category

Menu

Description

Dashboard

Shows summary information of service and processes

Design

Flow

Design and control flows

Job

Schedule

Manages schedules

Sftp

Manages sftp related jobs

Result

Transaction

Shows the result and the details of the transactions

Report

Shows the summary data of the transactions

Schedule

Shows the schedule execution results

Web Inout

Shows raw input/output message of Web service/REST

Interface

System

Manages source/target systems

Data Structure

Manages data structure

Field Group

Manages a single unit of fields

Field

Manages fields

Web Service

Service

Generates web services

Client

Generates web service clients

API Key (REST)

Generates API Keys for REST call

Utility

SQL Executor

Query executor for the registered databases

File Parser

File parser downloaded from (s)FTP server

Admin

User

Manages users of Admin UI

sFTP User

Manages sFTP users

Role

Manages roles of Admin UI

Application Group

Manages business groups

ACL

Manages Access Control List

Runtime Node

Manages runtime instances

Import

Deployment tool from test/staging to production

Housekeeping

Shows the status of the ISM tables and housekeeping of log tables

Parameters

Global parameters for the entire flows

Configuration

Global configuration

Activities

Shows the list of activities of users

Settings

General settings for UI

These are the menus to visit and the sequence to create a business flow.

· System

o If source or target systems are among database, (s)FTP, SMTP servers, system information should be registered before designing the flow.

· Data structure

o If mapping or predefined request/response is required, data structure should be registered before designing the flow.

· Flow design

o Implement the business logic in the flow.

· Web service

o If the flow will be served as a web service (SOAP), a new web service should be generated and deployed.

o If the flow will be served as a REST service, it is automatically registered with this endpoint.

§ /api/flow_id/flow_version

· Schedule

o If the flow will be executed by scheduler, a new schedule should be registered.

And once the flow is complete and executed, these pages will be visited.

· Transaction result

· Summary

http://ISM_HOST:18080/web
